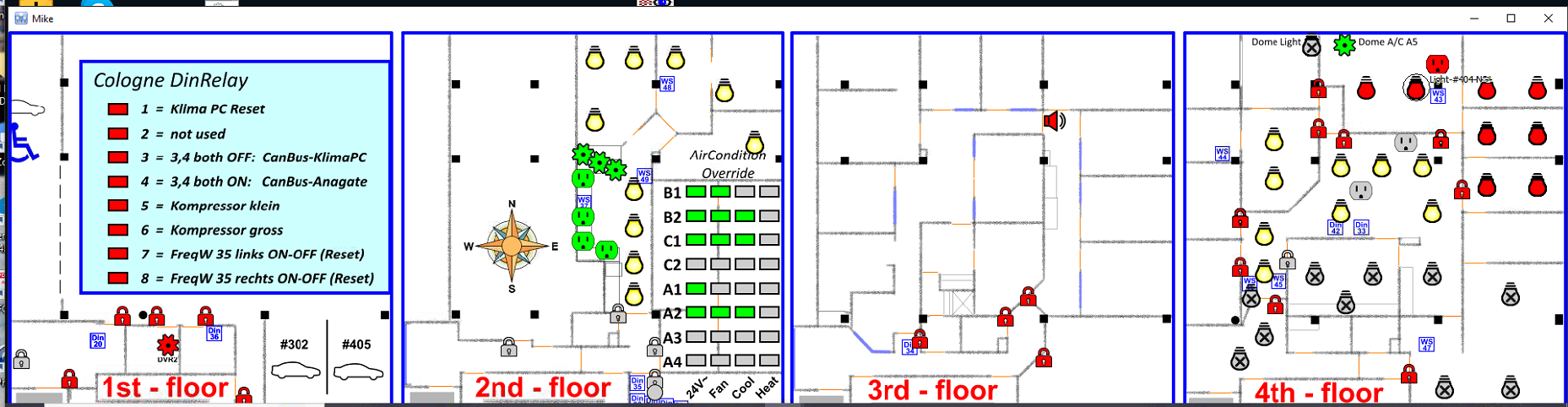

The Dashboard is a program that allows to view and manipulate the states of several DinRelays and WebSwitches in a graphic display showing e.g. the floorplan and the location of each affected unit controlled by the sub-relays. Three different images are used for each unit, representing the state of each unit (on, off, or error, typically by the color used to fill the image, while the shape suggest what type of unit it is).

Clicking on the symbols will toggle the state of the addressed sub-relay.

developed in C++
